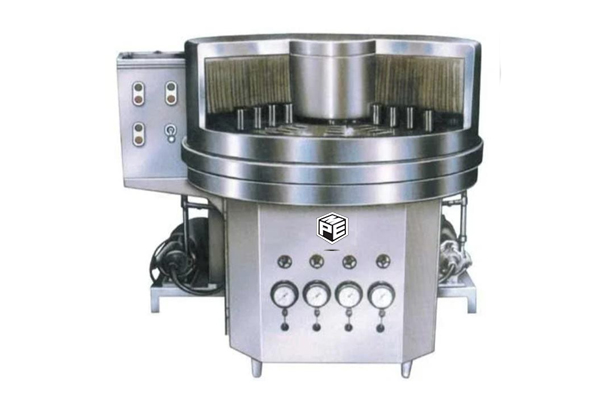

The “GENEVA” mechanism-based rotational Bottle Washing Machine Model LI-RBW requires manual loading and unloading of bottles. It works on the rotational concept. The LI-RBW model can wash a variety of bottle types with a maximum speed of 100 bottles per minute, ranging in size from 15 ml to 1000 ml. The frame structure and machine construction are both finished in stainless steel. The washing zone and any other parts that come into touch with them are composed of stainless steel 316 material. Bottle handling in spurts ensures that washing time is maximised. The machine also provides a variety of personalised choices for washing order in accordance with clients’ needs. For optimal cleaning, the washing procedure uses four separate washing zones. Bottles may also be washed outside using the machine.
SALIENT FEATURES OF ROTARY BOTTLE WASHING MACHINE :
- 16 Jets for each washing zones
- All contact parts made of SS-316 material
- Machine construction is in SS-304 material
- Suitable for 15 ml to 1000 ml Bottle Size*
- Machine with Geneva-Cam Mechanism
- Washing sequence can be made as per customers’ requirements.
- Built-in 2 Pumps and 2 Tanks
- Machine main drive with Safety Clutch System
TECHNICAL SPECIFICATION :
| Model No. | LI-RBW 64 | LI-RBW 96 | |
| Output | 40 to 60 Bottles/ Minute | 60 to 100 Bottles/ Minute | |
| Suitable for | 15 ml to 1000 ml Bottles* | ||
| Water Consumption | 450 to 650 Litre per hour | ||
| Washing Cycle | 4 Inner + 1 Outer (Inner wash sequence are inter changeable) | ||
| Water Tank | 2 nos. each with 50 Litres. Capacity Product Diameter: 85 mm* Maximum |
||
| Electric Supply | 415 VAC Three Phase Power Supply | 415 VAC Three Phase Power Supply | |
| Power | 2.5 H.P. | 2.5 H.P. | |
| Working Height | 860 – 910 mm | ||
| Overall Dimensions | 2100 mm (L) x 1820 mm (W) x 1500 mm (H) | ||
| Net Weight | 450 Kgs. | 550 Kgs. | |
