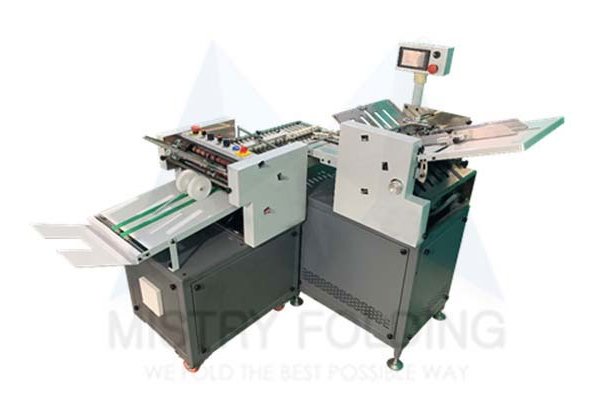

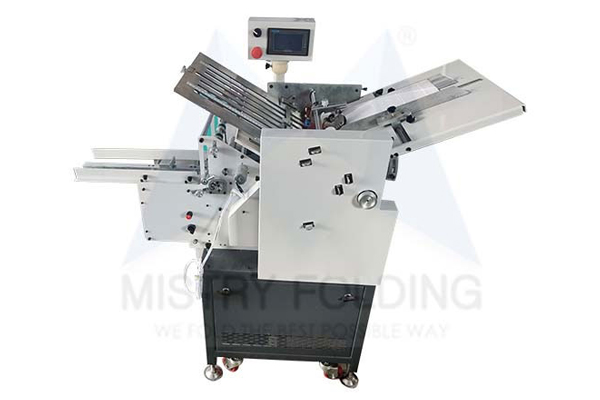

Friction Feed Paper Folding Machine

Our range of products include MF-4PFF , MF 2PFF, MF 6PFF , MF PF , 4PFF 612 ,4PFF 412 , a basic, four parallel fold machine. Different types of parallel folds are possible by the combination of four folding pockets and three deflectors. 4PFF friction feeder with advanced features and machine quality generated although four maximum folds are available; single, double or triple folds with different styles such as accordion fold, letter fold, double parallel fold, uneven folds etc. are also possible with 2PFF , 4PFF & 6PFF friction feeder. The friction feeder feeds a single paper at a time. Paper settings are easy to understand. This basic model with optional attachments can be converted into other configurations tool.

Optional:

  • Electronic Batch Counter
  • Vertical Stacker
  • Kicker
  • Noise Suppression Hoods
  • Rubber & Metal Combination Rollers
  • Folding Pockets With Position Indicator

Application:

  • Pharmaceutical Leaflets / Inserts
  • Pesticide Leaflets / Inserts
  • Sales Promotion Material
  • Mailers
  • Booklets
  • Diaries

Technical Specifications

MODEL 2PFF 4PFF 6PFF
PLC AND HMI PLC HMI WITH COLOR TOUCHSCREEN DELTA MAKE PLC HMI WITH COLOR TOUCHSCREEN DELTA MAKE PLC HMI WITH COLOR TOUCHSCREEN DELTA MAKE
FOLDING TRAYS 2 FOLDING POCKETS + 1 DEFLECTORS 4 FOLDING POCKETS + 3 DEFLECTORS 6 FOLDING POCKETS + 5 DEFLECTORS
MAX. FORMAT 300 X 450 MM* 300 X 420 MM* 300 X 500 MM*
MIN. FORMAT 100 X 150 MM 70 X 100 MM 70 X 100 MM
OUTPUT 14000 SHEETS / HR (A4/ SINGLE FOLD/ 60 GSM)* 18,000 SHEETS / HR (A4/ SINGLE FOLD/ 60 GSM)* 18,000 SHEETS / HR (A4/ SINGLE FOLD/ 60 GSM)*
ROLLER SPEED 100-120 M /MIN 120-130 M /MIN 120-130 M /MIN
PAPER 47 GSM TO 120 GSM* 47 GSM TO 130 GSM* 47 GSM TO 130 GSM*
PAPER TYPE BIBLE/MAPLITHO BIBLE/MAPLITHO BIBLE/MAPLITHO
POWER 230V, SINGLE PHASE , 50HZ 230V, SINGLE PHASE , 50HZ 230V, SINGLE PHASE , 50HZ

Note: Can Be Customized As Per Requirement

Technical Specs

MODEL 2CF 4CF 6CF
FOLDING TRAYS 2 POCKETS + 1 DEFLECTORS 4 POCKETS + 3 DEFLECTORS 6 POCKETS + 5 DEFLECTORS
MAX. FORMAT 300 X 300 MM* 300 X 300 MM* 300 X 300 MM*
MIN. FORMAT 50 X 90 MM 50 X 90 MM 50 X 90 MM
